An Introduction to Graphql in Drupal 8.5.*

May 25, 2018 https://github.com/alejandroq/graphql-drupal.meetup.edu

This article was originally part of my “edu” series originally publicized via a GitHub repository and live presented to the Drupal NOVA Meetup Group. Therefore much of it is organized in a manner meant to direct said presentation and is not optimized as an article.

Goal
Ulterior Motives
Requirements
Optional Requirements
Agenda
What is GraphQL?
Why try GraphQL?
Why GraphQL over Drupal’s JSON API?
GraphQL Gotchas
Headless Drupal 8 Setup
gql
- Inputs
- Mutation
- Query
React Setup
Resources

Goal

Demo GraphQL in Drupal and point out further resources if interested.

Ulterior Motives

Loosely demonstrate that ‘fuzzy’ contracts are a more scalable solution then strignant ones. The latter requiring alignment between back-end and front-end developers and resulting: 1) dependency brittleness, 2) undesirable side-effects of Conway’s Law and 3) more conscientious deprecation strategies. TL;DR: Querying an API from the client-side vs implementing a strict contract on said side.

GraphQL enables ‘fuzzy’ contracts between interdependent entities.

Requirements

PHP 7.x
Drupal 8
Node
NPM or Yarn

Optional Requirements

Composer
Docker
Drush
Lando

Agenda

What is GraphQL?
Why try GraphQL?
Why GraphQL over Drupal’s JSON API?
GraphQL Gotchas
gql
Headless Drupal 8 Setup
React Setup

What is GraphQL?

GraphQL (GQL), open sourced and developed by Facebook, defines itself as a query language for your API.

Why try GraphQL?

As a consumer, GQL allows you to compose a query that declares exactly what you need; it returns exactly that. The composition process allows you to concatenate what would be numerous requests in a RESTful service into one request. As a result, a server can transmit both smaller and less frequent payloads, especially benefitting mobile devices with poor connections/compute.

As a provider, GQL has powerful developer tools like GraphiQL and a type system. In our Drupal use case, the GraphQL module, maintains both Voyager and Explorer (GraphiQL) routes: /graphql/voyager and /graphql/explorer appropriately.

A few use cases: - As an obfuscating layer over an ugly and/or legacy API - Requesting data at a specific component level data - Transmitting data of loosely connected resources for a dashboard

Why GraphQL over Drupal’s JSON API?

The JSON API is a really great configuration-less module, but its disadvantages are: - complicated query - large output footprint - web of callbacks as you hop from related resource to related resource - multiple requests necessary for any UI’s of loosely connected resources (likely many routes in a web application) - strict contract between front-end and back-end; especially complicated if working with large entities (ex. 300+ attribute custom entities - why I first tried drupal/graphql) - neither can handle Drupal’s map field serialization well (as far as I know)

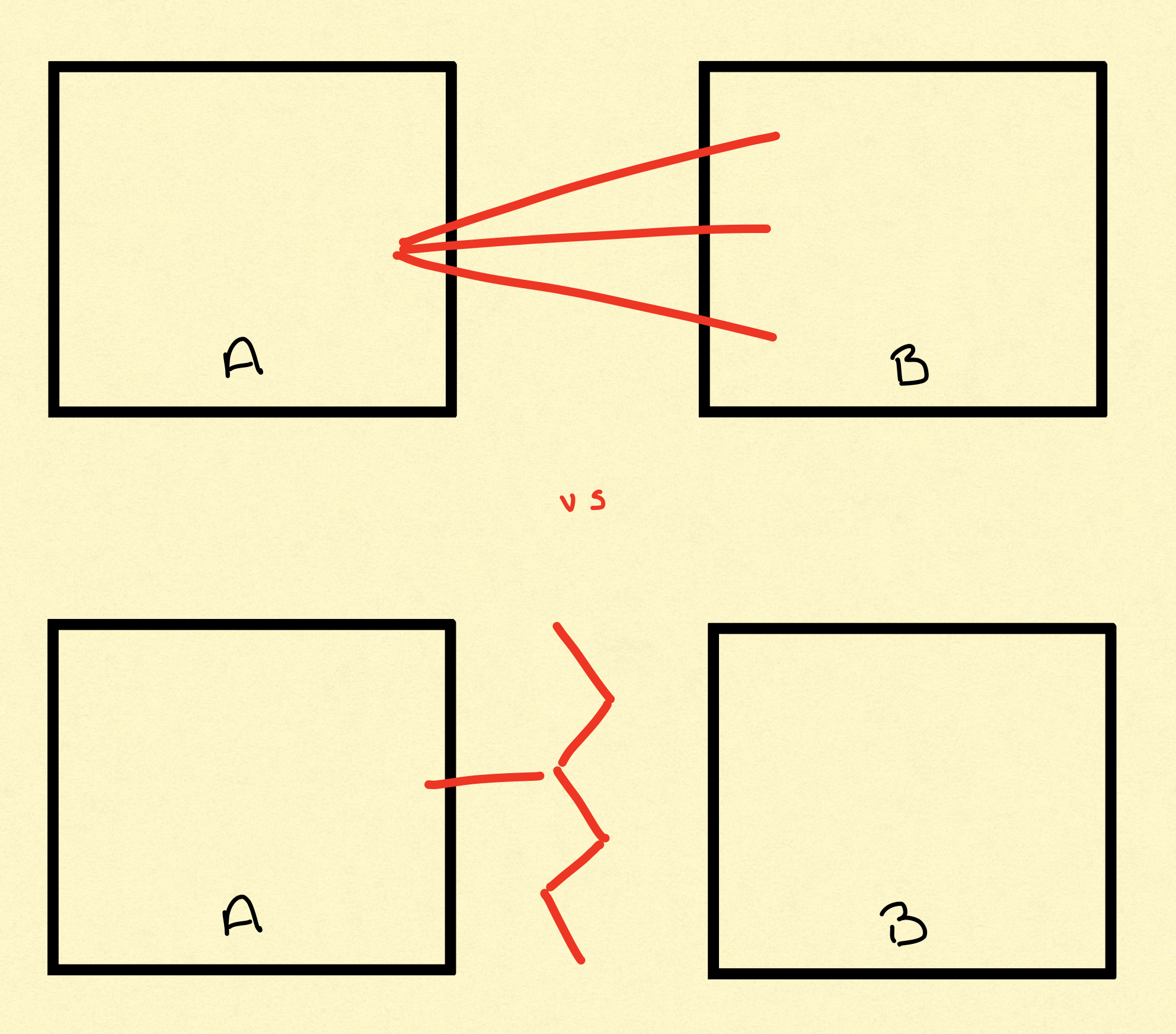

strict contracts vs fuzzy contracts

GraphQL’s serving specific queried data especially benefits mobile users. With tools and extensible options, Drupal/graphql extends a great provider, developer and consumer experiences.

Why try it over the JSON API? Of course the “corner cases” (i.e progressive versioning, speed of development, get it?):

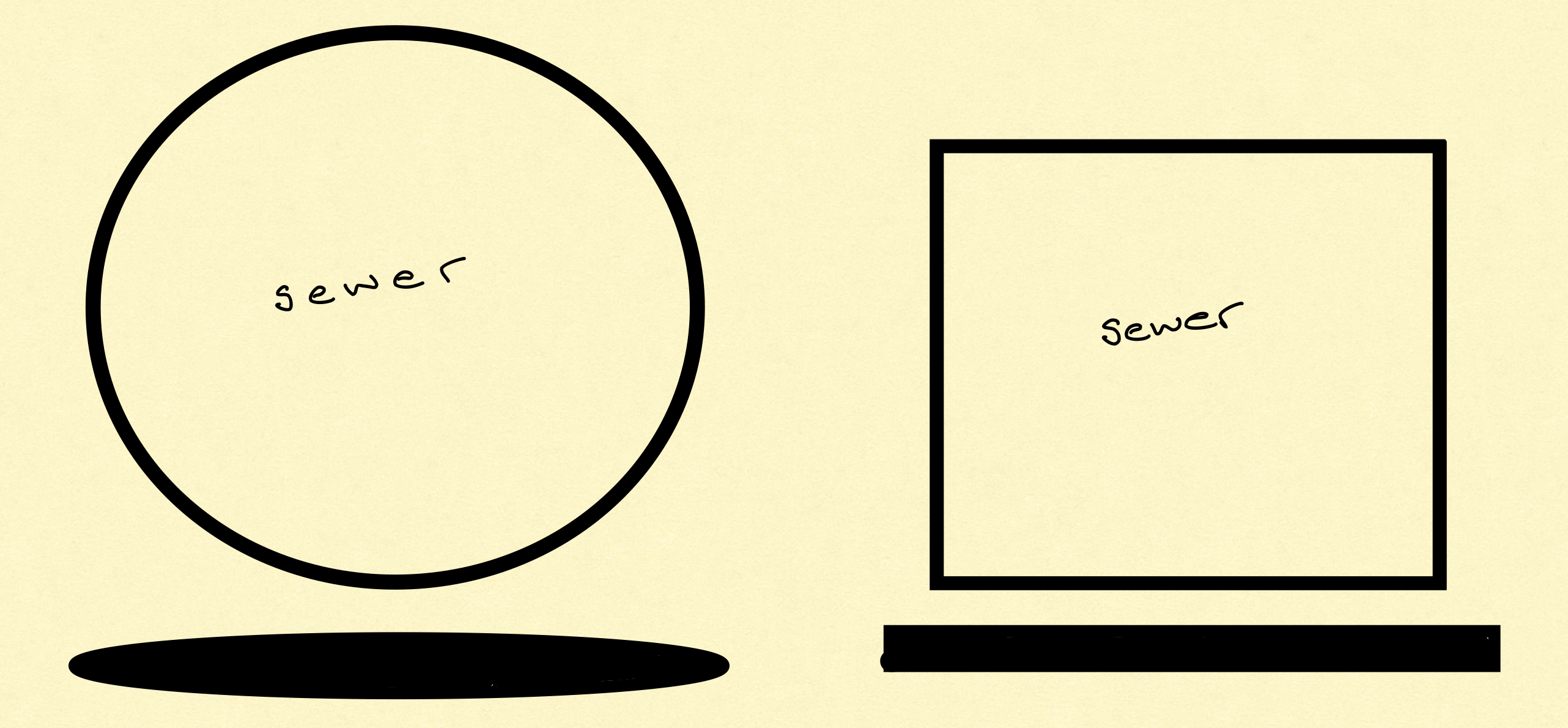

why are manholes round

GraphQL Gotchas

GraphQL is protocol agnostic and only depends on the I/O of strings. Whereas an erroneous HTTP response may return a 404, GraphQL always returns a 200. Health checks beware.
GraphQL does not rely on HTTP caching and outside of libraries like Apollo or Relay, GraphQL does not handle caching.
Not as self-documenting as a well designed RESTful API as the focus is on data and not on affordances.
Solves some problems and introduces others
In Drupal, filters require that the field name is the SQL Database’s field name: i.e. GraphQL Entity Type may equal fieldIsPrivateGroup, but you would utilize:

# Note: the field is a boolean in Drupal, but MySQL does not natively support a boolean. The field's* type is `tinyint`, therefore 1 == true and 0 == false.
# *field_is_private_group_value | tinyint(4)
{
  groupQuery(filter: {conditions: [{field: "field_is_private_group", value: ["1"], operator: EQUAL}]}) {
    count
  }
}

Headless Drupal 8 Setup

We are going to setup Drupal as a Todo List CMS. On the client-side we will use React. In-order to fulfill our Headless Drupal we will need a few things: - Drupal GraphQL setup - Composer dependency management - drupal gm -> TodosModule - drupal geco -> Todos - drupal geco -> TodoList

Our Custom Entities (TodoList and Todos) will have custom GQL Plugin Input Types and Mutations in-order that drupal/GraphQL module can utilize them. What drupal/GraphQL module CAN utilize can be validated in the https://headlessdrupal.lndo.site/graphql/explorer or https://headlessdrupal.lndo.site/graphql/voyager.

You can find the results in 02-headless-drupal directory.

I utilized Lando (a Docker utility) and Make to simplify environment instantiation to two commands:

make dependencies && make

Outbound will be an entire LAMP Stack with custom entities and proper configuration as stated above.

Note: OAuth or other authentication methods are out of the scope of this presentation - but in should absolutely be used in a real application

gql

Basics: http://graphql.org/learn/queries/

GQL is protocol agnostic therefore it does not leverage typical HTTP methods of GET, POST, PUT and DELETE. However:

HTTP	GQL
POST	Mutation
GET	Query
PUT	Mutation
DELETE	Mutation

Inputs

We define the TodoInput GraphQL input for Drupal 8 in 02-headless-drupal/web/modules/custom/todo_lists/src/Plugin/GraphQL/InputTypes/TodoInput.php:

<?php

namespace Drupal\todo_lists\Plugin\GraphQL\InputTypes;

use Drupal\graphql\Plugin\GraphQL\InputTypes\InputTypePluginBase;

/**
 * The input type for article mutations.
 *
 * @GraphQLInputType(
 *   id = "todo_input",
 *   name = "TodoInput",
 *   fields = {
 *     "lid" = "String",
 *     "state" = "String",
 *     "content" = "String",
 *   }
 * )
 */
class TodoInput extends InputTypePluginBase {

}

Mutation

The below is defined in found in 02-headless-drupal/web/modules/custom/todo_lists/src/Plugin/GraphQL/Mutations/CreateTodo.php:

mutation createTodoForTodoList($input: TodoInput) {
  createTodo(input: $input) {
    errors
    entity {
      entityId
    }
  }
}

# query variables:
# {
#  "input": {"lid": "1", "content": "hello world"}
# }

The below is defined in found in 02-headless-drupal/web/modules/custom/todo_lists/src/Plugin/GraphQL/Mutations/CreateTodoList.php:

mutation createTodoList($input: TodoListInput) {
  createTodoList(input: $input) {
    errors
    entity {
      entityId
    }
  }
}

# query variables:
# {
#  "input": {"name": "Best List"}
# }

# output (JSON):
# {
#   "data": {
#     "createTodoList": {
#       "errors": [],
#       "entity": {
#         "entityId": "1"
#       }
#     }
#   }
# }

The above’s PHP code:

<?php

namespace Drupal\todo_lists\Plugin\GraphQL\Mutations;

use Drupal\graphql_core\Plugin\GraphQL\Mutations\Entity\CreateEntityBase;
use Drupal\graphql\GraphQL\Execution\ResolveContext;
use GraphQL\Type\Definition\ResolveInfo;

/**
 * Simple mutation for creating a new article node.
 *
 * @GraphQLMutation(
 *   id = "create_todo_list",
 *   entity_type = "todo_list_entity",
 *   entity_bundle = "todo_list_entity",
 *   secure = true,
 *   name = "createTodoList",
 *   type = "EntityCrudOutput!",
 *   arguments = {
 *      "input" = "TodoListInput"
 *   }
 * )
 */
class CreateTodoList extends CreateEntityBase {

  /**
   * {@inheritdoc}
   */
  protected function extractEntityInput($value, array $args, ResolveContext $context, ResolveInfo $info) {
    return [
      'name' => $args['input']['name'],
    ];
  }

}

The below updates an already created Todo 02-headless-drupal/web/modules/custom/todo_lists/src/Plugin/GraphQL/Mutations/UpdateTodo.php:

mutation updateTodo($id: String, $input: TodoInput) {
  updateTodo(id:$id, input:$input) {
    errors
    entity{
      ...on TodoEntity{
        content
        state
      }
    }
  }
}

# query variables:
# {
#   "input": {"lid": 1, "content": "goodbye world", "state": "1"},
#   "id": "1"
# }

# post query:
query {
  todoEntityQuery(filter: {}) {
    count
    entities{
      ...on TodoEntity{
        content
        state
      }
    }
  }
}

# post query result (JSON):
# {
#   "data": {
#     "todoEntityQuery": {
#       "count": 2,
#       "entities": [
#         {
#           "content": "goodbye world",
#           "state": "1"
#         },
#         {
#           "content": "hello world",
#           "state": "0"
#         }
#       ]
#     }
#   }
# }

The below updates the TodoList from state 0 to state 1:

mutation updateTodoList($id: String, $input: TodoListInput) {
  updateTodoList(id:$id, input:$input) {
    errors
    entity{
      ...on TodoListEntity{
        name
        state
      }
    }
  }
}

# query variables:
# {
#   "input": {"state": "1"},
#   "id": "1"
# }

# output:
# {
#   "data": {
#     "updateTodoList": {
#       "errors": [],
#       "entity": {
#         "name": "Best List",
#         "state": "1"
#       }
#     }
#   }
# }

Query

Now that we have created a Todo List lets query it:

query {
  todoListEntityQuery(filter:{}) {
    count
    entities{
      entityId
      ...on TodoListEntity{
        name
      }
    }
  }
}

# output:
# {
#   "data": {
#     "todoListEntityQuery": {
#       "count": 1,
#       "entities": [
#         {
#           "entityId": "1",
#           "name": "Best List"
#         }
#       ]
#     }
#   }
# }

We keep filter: {} as we are not explicitly filtering any content.

The previous queries were tested locally in https://headlessdrupal.lndo.site/graphql/explorer.

React Setup

We will be using create-react-app CLI tool to quickly create a React app.

Quick note: in-order to avoid Access-Control-Origin errors, update your web/sites/default/services.yml appropriately:

cors.config:
    enabled: true
    # Specify allowed headers, like 'x-allowed-header'.
    allowedHeaders: ['Content-Type', 'Authorization']
    # Specify allowed request methods, specify ['*'] to allow all possible ones.
    allowedMethods: ['GET', 'POST']
    # Configure requests allowed from specific origins.
    allowedOrigins: ['*']
    # Sets the Access-Control-Expose-Headers header.
    exposedHeaders: false
    # Sets the Access-Control-Max-Age header.
    maxAge: false
    # Sets the Access-Control-Allow-Credentials header.
    supportsCredentials: false

This will avoid request pre-flight errors once your working from a single page application

We will create a couple components, namely a TodoList comprised of Todos. We will compose them of behaviors that include GraphQL queries via Higher Order Components. This way we can maintain the components as simple as possible.

Status Update as of 5/22/18 @ 7PM: the Headless React app hasn’t been completed. But here are a few takeaways about combining the Apollo GraphQL client, React and Recompose.

Locally setup a new ApolloClient

import { ApolloClient } from 'apollo-client';
import { HttpLink } from 'apollo-link-http';
import { InMemoryCache } from 'apollo-cache-inmemory';

export const client = new ApolloClient({
  link: new HttpLink({ uri: 'http://headlessdrupal.lndo.site:8000/graphql' }),
  cache: new InMemoryCache(),
  connectToDevTools: true,
});

Enwrap your application into with the ApolloProvider so every component has props to query/mutate data

import React from 'react';
import { ApolloProvider } from 'react-apollo';
import styled from 'styled-components';

import { client } from './client';
import { Lists } from '../Lists/Lists';


const Container = styled.div`
  padding: 1em 3em;
`

export const App = () => (
  <ApolloProvider client={client}>
    <Container>
      <h1>
        Todo List
      </h1>
      <Lists />
    </Container>
  </ApolloProvider>
)

The following is a Higher Order Component (HOC) is an example that queries for a list of TodoLists. Note how we utilize the Recompose utility library to enable branching edge cases such as Loading and Errors during HTTP transit

import React from 'react';
import { graphql } from 'react-apollo';
import gql from 'graphql-tag';
import { compose, branch, renderComponent, mapProps } from 'recompose';

const _listsQuery = graphql(gql`
    query {
        todoListEntityQuery(filter:{}) {
            count
            entities{
                entityId
                ...on TodoListEntity{
                    name
                    state
                }
            }
        }
    }
`);

const massageLists = ({ data: { todoListEntityQuery: { entities }}}) => ({
    lists: entities,
});

const isLoading = ({ data: { loading }}) => loading;

const hasError = ({ data: { error }}) => error;

const LoadingComponent = () => <p>Loading...</p>

const ErrorComponent = ({ data: { error: { message }, ...props } }) => (
    <React.Fragment>
        <p style={{color: 'red'}}>{message}</p>
        <code>{JSON.stringify(props)}</code>
    </React.Fragment>
);

export const listsQuery = compose(
    _listsQuery,
    branch(isLoading, renderComponent(LoadingComponent)),
    branch(hasError, renderComponent(ErrorComponent)),
    mapProps(massageLists)
);

We utilize the above HOC as so

import React from 'react';
import { compose } from 'recompose';

import { listsQuery } from '../../hoc/listsQuery';
import { TodoList } from '../TodoList/TodoList';

const enhance = compose(
    listsQuery
)

export const Lists = enhance(({ lists }) => (
   <React.Fragment>
       {
           lists.map(({ entityId, ...props }, i) => <TodoList id={entityId} key={i} {...props} />)
       }
   </React.Fragment>
));

Our TodoList leverages the following HOC so we can toggle its state of “Completion” or “Incompletion”

import gql from 'graphql-tag';
import { graphql } from 'react-apollo';
import { compose, withHandlers, withState, mapProps } from 'recompose';

const mutation = gql`
    mutation updateTodoList($id: String, $input: TodoListInput) {
        updateTodoList(id:$id, input:$input) {
            errors
            entity{
                ...on TodoListEntity{
                    name
                    state
                }
            }
        }
    }
`

export const todoListMutation = compose(
    graphql(mutation),
    withState('originState', 'setOriginState', 0),
    withHandlers({
        completeTodoList: ({ mutate, id, state, originState, setOriginState }) => event => {
            if (originState !== state) {
                setOriginState(state)
                originState = state;
            }
            mutate({
                variables: {
                    id,
                    input: {
                        state: (originState === "1") ? "-1" : "1"
                    },
                },
            }).then(({ data: { updateTodoList: { entity: { state } }}}) => {
                console.log('[todoListMutation] State', state);
                setOriginState(state);
            }).catch(err => {
                console.error(err);
            });
        }
    }),
    mapProps(({ originState, ...props }) => ({ state: originState, ...props })),
)

Our actual TodoList with branching Components and access to an event handler for the triggering of our mutation function

import React from 'react';
import FlexView from 'react-flexview';
import { branch, compose, renderComponent } from 'recompose';

import { todoListMutation } from '../../hoc/todoListMutation';

const isComplete = ({ state }) => state === "1";

const CompleteList = ({ id, name, completeTodoList }) => (
    <FlexView>
        <FlexView marginRight={'1em'}>
        <h2 style={{color: 'gray', textDecoration: 'line-through'}}>{name}</h2>
        </FlexView>
        <FlexView vAlignContent={'center'}>
            <div>
                <button onClick={() => completeTodoList()}>Mark as Incomplete</button>
            </div>
        </FlexView>
    </FlexView>
);

const IncompleteList = ({ id, name, completeTodoList }) => (
    <FlexView>
        <FlexView marginRight={'1em'}>
            <h2>{name}</h2>
        </FlexView>
        <FlexView vAlignContent={'center'}>
            <div>
                <button onClick={() => completeTodoList()}>Mark as Complete</button>
            </div>
        </FlexView>
    </FlexView>
);

const enhance = compose(
    todoListMutation,
    branch(isComplete, renderComponent(CompleteList), renderComponent(IncompleteList)),
);

export const TodoList = enhance();

NOTE: as for 5/22/18 by 7PM I had only a few hours to put the above React components together and therefore left much to be desired as per the other CRUD components

Resources

This is an expansive topic (and my review thus far very basic), so be sure to checkout proper documentation, etc!
https://www.amazeelabs.com/en/blog/graphql-for-drupal-basics

Alejandro Quesada @redpause - Created May 25, 2018 - Last Updated Jul 14, 2018
